Swivel castor, housing made of pressed steel, zinc plated, double ball bearing, swivel head, plate fitting, plastic ring.
This series wheel is made of Polypropylene with TPR ring, equipped with roller bearing and single ball bearing.
Widely used for kinds of roll cage containers, industrial trolleys, carts etc.
Diameter ranges from 100mm to 125mm.
Example for application:
Roll containers
Various mobile storage and transport devices.
Highlights and advantages:
Durable alternative with high load capacity
Noise-reduced running through the inner dampening
Sideward movement - for example on a truck - possible
without any problems
How to Choose a Quality Swivel Caster: Key Materials and Design Features
Caster body material: pressed steel
The main component of this universal caster is the shell made of pressed steel. Pressed steel is a high-hardness material that is processed to provide good load-bearing capacity and long-term durability. In addition, the surface of the shell is galvanized to effectively prevent rust and corrosion, allowing the caster to maintain good use in various environments.
Double ball bearing swivel head
The swivel head is an important part of the universal caster, which directly affects the flexibility and maneuverability of the universal caster. This universal caster adopts a double ball bearing design, which greatly improves its rotation stability and flexibility. Whether on a smooth surface or on a slightly uneven surface, the double ball bearings can ensure that the caster rotates smoothly and reduces resistance. The swivel head adopts a plate-mounted installation method, which is more stable and convenient to install.

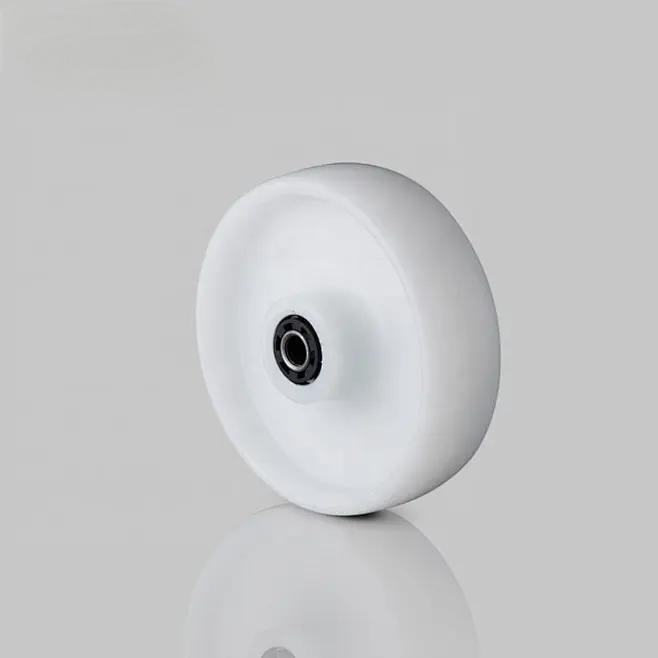

High quality wheel material: Polypropylene with TPR ring
The casters are made of polypropylene, which is wear-resistant and impact-resistant. In addition, the wheel surface is equipped with a TPR (thermoplastic rubber) ring, which further enhances its durability and softness. The design of the TPR ring not only reduces the noise of the wheel, but also provides better grip to prevent slipping and tipping.
Unique plastic ring design
The design of the universal caster also includes a plastic ring, which is a small design detail that plays a key role in practical use. The plastic ring can not only effectively reduce friction and extend the service life of the bearing, but also prevent particles such as dust from entering the bearing, thereby maintaining smooth rotation and durability.
Choosing a high-quality swivel caster requires a comprehensive consideration of its materials and design features. This swivel caster is made of pressed steel, zinc-plated, and equipped with a double ball bearing swivel head. The wheel is made of polypropylene and TPR rings, and the fine plastic ring design provides users with high-performance and high-durability caster products. Whether in industrial applications or daily home use, this swivel caster is your ideal choice.
Product parameters
|
|
|
|
|
|
|
|
|
|
 |
|
Wheel Diameter |
Load |
Axle |
Plate/Housing |
Overall |
Top-plate Outer Size |
Bolt Hole Spacing |
Bolt Hole Diameter |
Opening |
Product Nunber |
|
80*36 |
100 |
38 |
2.5|2.5 |
108 |
105*80 |
80*60 |
11*9 |
42 |
R1-080S4-110 |
|
100*36 |
100 |
38 |
2.5|2.5 |
128 |
105*80 |
80*60 |
11*9 |
42 |
R1-100S4-110 |
|
125*36 |
150 |
38 |
2.5|2.5 |
155 |
105*80 |
80*60 |
11*9 |
52 |
R1-125S4-110 |
|
125*40 |
180 |
38 |
2.5|2.5 |
155 |
105*80 |
80*60 |
11*9 |
52 |
R1-125S4-1102 |
ISO, ANSI, EN ,DIN:
We can customize castors and single wheels according to ISO, ANSI EN and DIN standards for customers.
The predecessor of the company was BiaoShun Hardware Factory,founded in 2008 which have had 15 years of professional production and manufacturing experience.
Strictly implements the ISO9001 quality system standard, and manages product development, mould design and manufacturing, hardware stamping, injection moulding, aluminum alloy die casting, surface treatment, assembly, quality control, packaging, warehousing and other aspects in accordance with the standardized processes.
Features
1. It is non-toxic and odorless, belongs to environmental protection materials, and can be recycled.
2. It has oil resistance, acid resistance, alkali resistance and other characteristics. Common organic solvents such as acid and alkali have little effect on it.
3. It has the characteristics of rigidity, toughness, fatigue resistance and stress cracking resistance, and its performance is not affected by humidity environment.
4. Suitable for use on a variety of ground; Widely used in factory handling, warehousing and logistics, machinery manufacturing and other industries; The operating temperature range is - 15~80 ℃.
5. The advantages of bearing are small friction, relatively stable, not changing with bearing speed, and high sensitivity and accuracy.
FAQ: Industrial Castors
- What are industrial castors?
- Industrial castors are wheels designed for heavy-duty use in various industrial applications. They are typically mounted on equipment, trolleys, carts, or machinery to enable easy movement and transportation of heavy loads.
- What types of industrial castors are available?
- Fixed Castors: Fixed wheels that only rotate around a single axis.
- Swivel Castors: Wheels that can rotate 360 degrees, allowing for easy maneuverability.
- Braked Castors: Castors that include a brake to lock the wheel in place and prevent unwanted movement.
- Heavy-Duty Castors: Designed to support larger loads, typically for industrial equipment and machinery.
- Anti-Static Castors: Used for environments sensitive to electrostatic discharge (ESD), commonly found in electronics and cleanroom applications.
- Twin-Wheel Castors: Feature two wheels per side for better weight distribution and stability.
- What materials are industrial castors made from?
- Industrial castors can be made from various materials depending on their application:
- Rubber: Ideal for quiet operation and shock absorption.
- Polyurethane: Durable and resistant to wear, often used in environments where heavy loads are moved on hard surfaces.
- Steel: Used in heavy-duty applications for maximum strength and durability.
- Nylon: Lightweight, corrosion-resistant, and ideal for indoor applications.
- Industrial castors can be made from various materials depending on their application:
- How do I choose the right industrial castor?
- Consider factors such as the load capacity, type of surface the castors will be used on (smooth, rough, etc.), required mobility (fixed vs. swivel), and any special requirements (brakes, anti-static properties, etc.).
- What is the weight capacity of industrial castors?
- The weight capacity varies depending on the size, material, and design of the castor. Castors can typically handle from 50 kg to several thousand kilograms per wheel. For extremely heavy-duty applications, specific castors are designed to support even greater loads.
- Can industrial castors be used outdoors?
- Yes, many industrial castors are designed for outdoor use, but you should choose castors with corrosion-resistant materials such as galvanized steel or stainless steel. Additionally, the wheels should be suitable for rough or uneven surfaces.
- How do I maintain industrial castors?
- Regular maintenance is important to ensure the longevity of industrial castors:
- Clean castors frequently to remove dirt and debris.
- Lubricate moving parts, such as bearings, to reduce wear.
- Inspect for signs of wear or damage, particularly on high-load castors.
- Replace castors that show signs of excessive wear, cracking, or deformation.
- Regular maintenance is important to ensure the longevity of industrial castors:
- Can industrial castors be customized?
- Yes, many manufacturers offer customization options for industrial castors. Customization can include adjustments to load capacity, wheel material, size, color, or even adding specialized features such as brakes or shock absorbers.
- What is the difference between a swivel castor and a fixed castor?
- A swivel castor can rotate 360 degrees, offering better maneuverability and flexibility in tight spaces. A fixed castor, on the other hand, only moves in a straight line, making it suitable for stable, linear movement along a particular path.
- Are there castors designed for specific industries?
- Yes, there are castors designed for specific industries, such as food processing, healthcare, aerospace, and logistics. These castors are built to meet the unique requirements of the environment, such as hygiene standards, static control, or resistance to chemicals.
INDUSTRIAL CASTOR VIDEO
2023 Jun The products we show in the Shanghai LogiMAT exhibition
The products we show in the Shanghai LogiMAT exhibition
Brief introduction of Rizda Castor.
125 mm Pa Castor Solution
125mm roll container castor
125mm nylon castor
How to install a castor
Assembly steps of 125 swivel castor with total brake, TPR.
Electroplating process of Castor wheel
Electroplating is the process of plating a thin layer of other metals or alloys on the surface of some metal using the principle of electrolysis, A process in which a metal film is attached to the surface of a metal or other material by electrolysis, thereby preventing metal oxidation (e.g., corrosion), Improve wear resistance, conductivity, reflective, corrosion resistance (copper sulfate, etc.) and enhance the role of beauty. #industrialcastor
