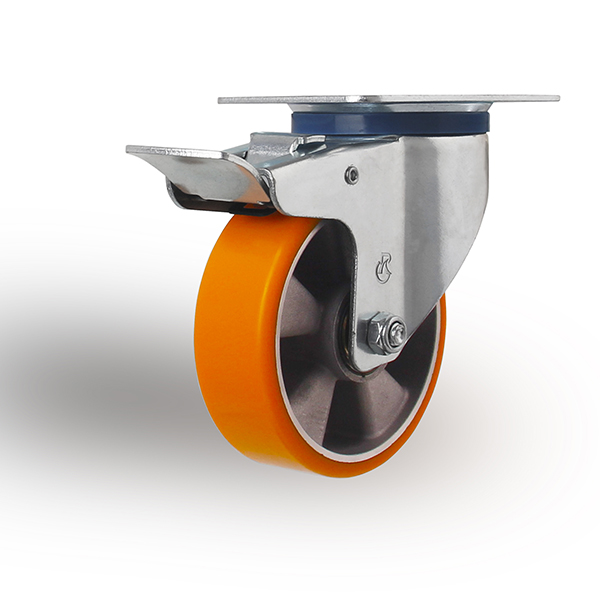

Product introduction

Aluminum core rubber wheel has high bearing capacity, wear resistance, impact resistance, chemical corrosion resistance and heat resistance, and is widely used in industry. In addition, the outer layer of the wheel is wrapped by rubber, which has good noise reduction effect. There are several small steel balls around the shaft center in the double ball bearing, so the friction is small and there is no oil leakage,（

Detailed parameters of the Castor:

• Wheel Dia : 100mm

• Wheel width : 32mm

• Load capacity : 150 KG

• Axle offset : 38

• Load hight : 128mm

• Top plate size : 105mm*80mm

• Bolt hole spacing : 80mm*60mm

• Bolt hole Dia : Ø11mm*9mm

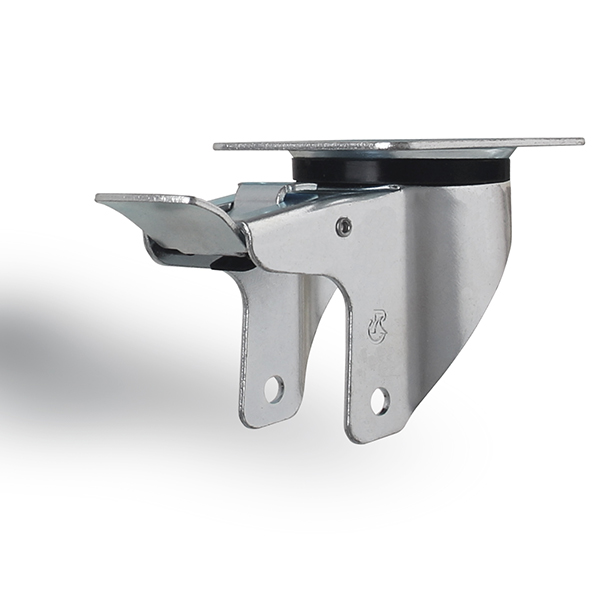

Bracket:

• pressed steel, zinc-plated, blue-passivated
• double ball bearing in the swivel head
• Total brake
• minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic riveting process

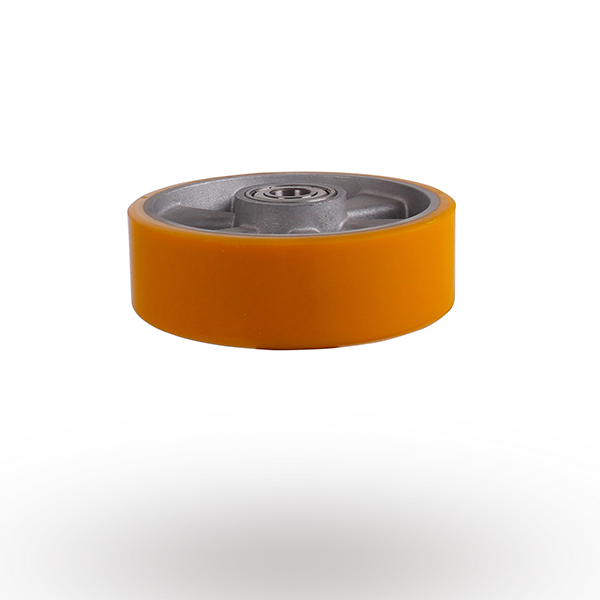

Wheel :

• Tread : HIgh quality PU, Hardness 86 shore A, Colore yellow, non-marking, non-staining.

• wheel Rim: die-cast aluminium, colour silver grey.

• Double ball bearing

Company Introduction

Zhongshan Rizda Castor Manufacturing Co., Ltd. Located in Zhongshan City, Guangdong Province, one of the central cities of the Pearl River Delta, covering an area of more than 10000 square maters. It is a professional manufacture of wheels and Castors to provide customers with a wide range of sizes, types and styles of products for a variety of applications. The predecessor of the company was BiaoShun Hardware Factory, founded in 2008 which have had 15 years of professional production and manufacturing experience.

Features

1. Excellent tensile resistance and highest tensile strength.

2. The aluminum core is not easy to rust and has good durability.

3. Good electrical insulation, skid resistance, wear resistance, weather resistance and general chemicals.

4.Soft texture can effectively reduce noise in use.

5. Good dynamic mechanical properties.

6. Double ball bearing has long service life and good anti-aging performance.

Product parameters

Wheel Diameter & Tread Leg space	Load (kg)	Axle Offset	Bracket Thickness	Load Height	Top-plate  Outer Size	Bolt Hole  Spacing	Bolt Hole  Diameter	Opening Leg space	Product Nunber
80*32	120	38	2.5|2.5	108	105*80	80*60	11*9	42	R1-080S4-622
100*32	150	38	2.5|2.5	128	105*80	80*60	11*9	42	R1-100S4-622
125*40	180	38	2.5|2.5	155	105*80	80*60	11*9	52	R1-125S4-622
160*50	250	52	3.0|3.5	190	135*110	105*80	13.5*11	62	R1-160S4-622
200*50	300	54	3.0|3.5	235	135*110	105*80	13.5*11	62	R1-200S4-622
