Air Cargo Castor, 58mm, Diamond top plate, Nylon wheel，Airport Transport Castor

Short Description:

Bearing: (Central precision ball bearing)

The nylon castors are single wheels made of high-grade reinforced nylon, super polyurethane and rubber. The Load product has high impact resistance. The castors are internally lubricated with General purpose lithium-based grease, which has good water resistance, mechanical stability, corrosion resistance and oxidation stability. It is suitable for the lubrication of rolling bearings, sliding bearings and other friction parts of various mechanical equipment within the working temperature of – 20~120 ℃.

Send email to us

Product Detail

Product Tags

Company Introduction

Zhongshan Rizda Castor Manufacturing Co., Ltd. Located in Zhongshan City, Guangdong Province, one of the central cities of the Pearl River Delta, covering an area of more than 10000 square maters. It is a professional manufacture of wheels and Castors to provide customers with a wide range of sizes, types and styles of products for a variety of applications. The predecessor of the company was BiaoShun Hardware Factory, founded in 2008 which have had 15 years of professional production and manufacturing experience.

Product introduction

The weight of nylon castors is light, the mechanical resistance is small, the rotation is flexible, and the manual and mechanical use is more labor-saving. It is also suitable for working in wet environment, and has the characteristics of anti-grease and anti-acid, and is also an environmental protection material. The single ball bearing adopts the mixed form of sliding friction and rolling friction, and the rotor and stator are lubricated with balls and equipped with lubricating oil. It overcomes the problems of short service life and unstable operation of oil-bearing.

Detailed parameters of the Castor:

• Wheel Dia : 58mm

• Wheel width : 34mm

• Load capacity : 250 KG

• Load hight : 97mm

• Top plate Hole Dia : c12mm

• Installation hole Dia : Ø125mm

Bracket:

• pressed steel, zinc-plated, Yellow-passivated

• double ball bearing in the swivel head

• swivel head seal

• minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic riveting process

Wheel:

• Tread : High quality Nylon, Color White, non-marking, non-staining.

Product design pictures

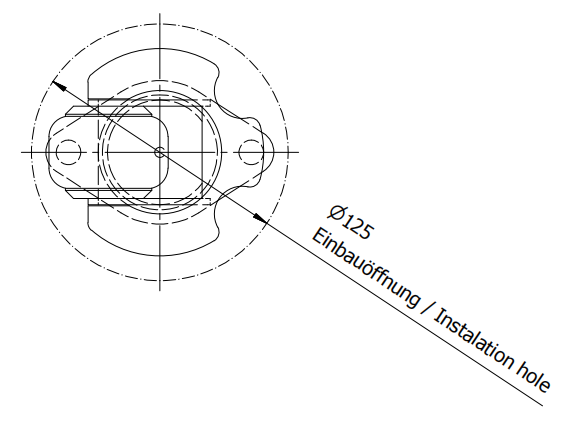

Installation Hole

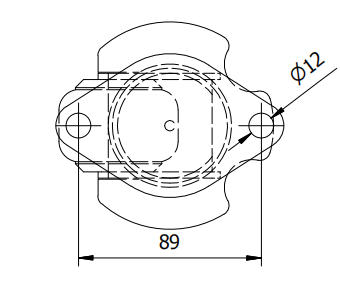

Hole Diameter and Bolt Hole Spacing

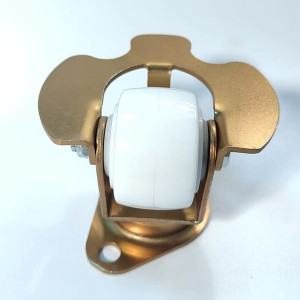

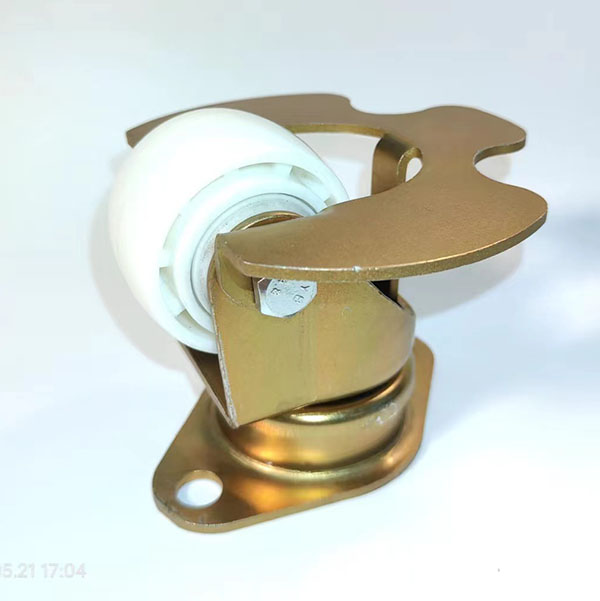

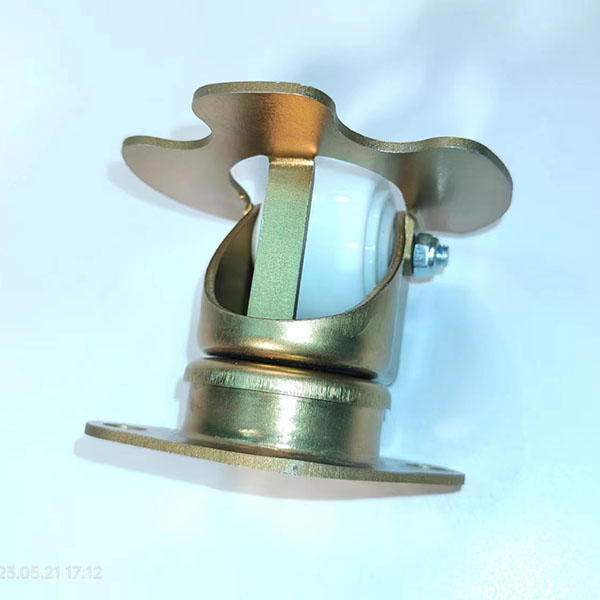

Product Line picture

Features

1. Good heat resistance: its thermal deformation temperature is 80-100 ℃.

2. Good toughness and chemical resistance.

3. Non-toxic and odorless, environment-friendly material, recyclable;

4. Corrosion resistance, acid resistance, alkali resistance and other characteristics. Common organic capacitors such as acid and alkali have little impact on it.

5. Rigid and tough, with the characteristics of fatigue resistance and stress cracking resistance, its performance is not affected by humidity environment; It has a high bending fatigue life.

6. Single ball bearing has low noise and long service life. The advantage is that the noise will not increase after long-term use, and no lubricant is required.
