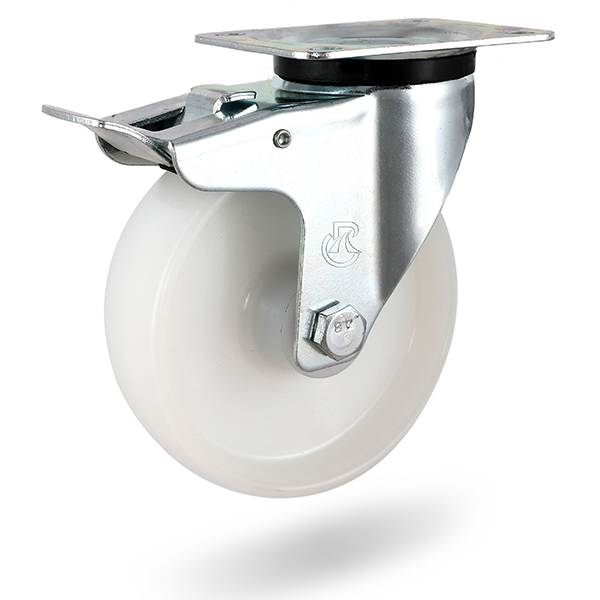

125mm PP (Polypropylene) Wheels, with total brake, Medium Duty Castors, European stamping industrial bracket, Zinc ( galvanized) surface Featured Image
  • 125mm PP (Polypropylene) Wheels, with total brake, Medium Duty Castors, European stamping industrial bracket, Zinc ( galvanized) surface

125mm PP (Polypropylene) Wheels, with total brake, Medium Duty Castors, European stamping industrial bracket, Zinc ( galvanized) surface

Short Description:

European medium duty industrial castors, Steel stamping Swivel bracket with total brake, Zinc ( Galvanized ) surface;  with a Medium load capacity design. It has a white PP (Polypropylene ) wheel, and roller bearing.


  • facebook
  • linkedin
  • twitter
  • youtube

Product Detail

Product Tags

Bracket: A series

          • Steel stamping

          • Double ball bearing in the swivel head

          • Swivel head sealed

          • With Total Brake

          • Minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic riveting.



Wheel:

           • Wheel tread: White PP (Polypropylene ) wheel, non-marking, non-staining

           • Wheel rim: injection molding, Roller bearing.

白尼龙无盖刹车600

Other characteristics:

                                  • Environmental protection

                                  • wear resistance

                                  • Shock Resistance

刹车底板

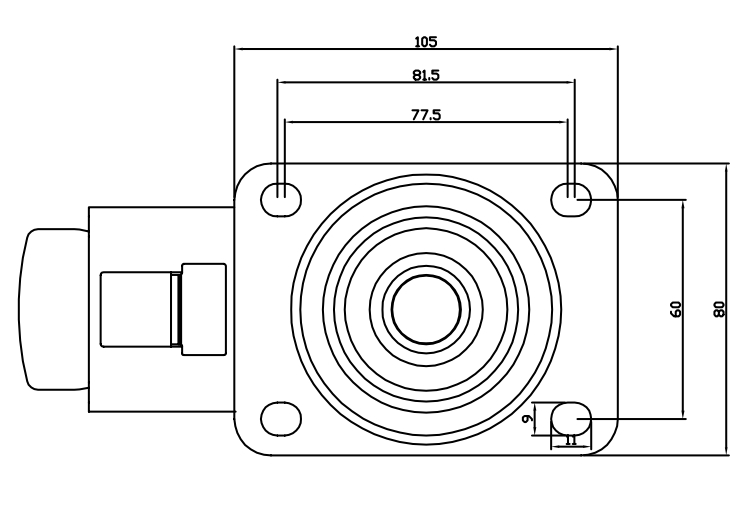

Technical data:



Wheel Ø (D) 125mm
Wheel Width 36mm
Load Capacity 100mm
Total Height (H) 155mm
Plate Size 105*80mm
Bolt Hole Spacing 80*60mm
Offset (F) 38mm
Bearing type Central precision ball bearing
Non-marking   ×
Non-staining   ×







Product parameters

Product Parameters (1)

Product Parameters (2)

Product Parameters (3)

Product Parameters (4)

Product Parameters (5)

Product Parameters (6)

Product Parameters (7)

Product Parameters (8)

Product Parameters (9)

 no.

Wheel Diameter
 & Tread Width

Load
(kg)

Axle
Offset

Plate/Housing
Thickness

Overall
Height

Top-plate  Outer Size

Bolt Hole  Spacing

Bolt Hole  Diameter

Opening
Width

Product Nunber

80*36

100

38

2.5|2.5

108

105*80

80*60

11*9

42

 R1-080S4-110

100*36

100

38

2.5|2.5

128

105*80

80*60

11*9

42

 R1-100S4-110

125*36

150

38

2.5|2.5

155

105*80

80*60

11*9

52

 R1-125S4-110

125*40

180

38

2.5|2.5

155

105*80

80*60

11*9

52

 R1-125S4-1102

Features

1. It is non-toxic and odorless, belongs to environmental protection materials, and can be recycled.

2. It has oil resistance, acid resistance, alkali resistance and other characteristics. Common organic solvents such as acid and alkali have little effect on it.

3. It has the characteristics of rigidity, toughness, fatigue resistance and stress cracking resistance, and its performance is not affected by humidity environment.

4. Suitable for use on a variety of ground; Widely used in factory handling, warehousing and logistics, machinery manufacturing and other industries; The operating temperature range is - 15~80 ℃.

5. The advantages of bearing are small friction, relatively stable, not changing with bearing speed, and high sensitivity and accuracy.
